Key Features
·Heavy-duty aluminum construction for strength & lightweight handling
·Wingnut/knob locking system for secure closure
·Built-in electric heating element for quick and efficient sterilization
·Operates at standard sterilization pressure up to 15 psi
·Automatic cut-off/temperature control (depending on model)

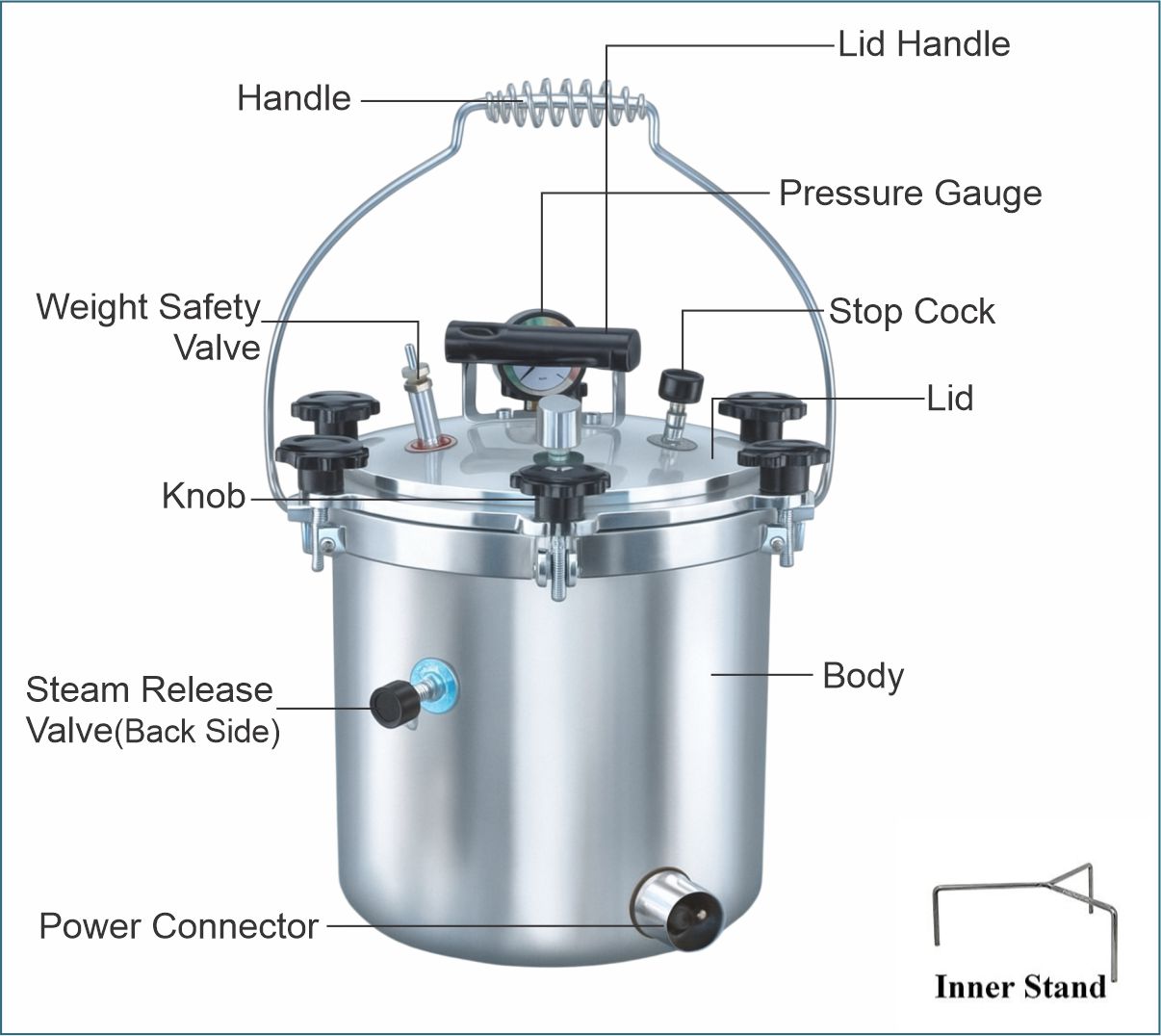

·Equipped with pressure gauge, safety valve, and steam release system
·Available in multiple capacities: 8L, 12L, 16L, 22L, and larger on request
·Portable and user-friendly design
Applications
·Hospitals, nursing homes, and healthcare centers
·Medical, dental, and diagnostic laboratories
·Pharmaceutical and research institutes
·Veterinary clinics and animal health centers
·Educational institutions for training & demonstrations
Sterilization Cycle:
·Operates at 121°C at 15 psi pressure
·Typical cycle time: 15–30 minutes depending on load
Power Supply:
·220V AC, 50 Hz (customizable for other voltages)
Sizes:
| Code | Capacity (Litres) including Lid |
Dia x Height (mm) | Dia x Height (inch) |
| AU5100 | 17 | 300 x 250 | 12 x 10 |
| AU5200 | 21 | 300 x 300 | 12 x 12 |
| AU5300 | 27 | 300 x 380 | 12 x 15 |
| AU5400 | 39 | 350 x 380 | 14 x 15 |
*Autoclave sizes can be customized
