Key Features
·Stainless steel triple-walled construction (inner
chamber, water jacket, and outer cabinet).
·Radial locking system for secure high-pressure
sealing.
·Digital temperature & timer controls with auto-cut off
·Operating pressure: 15–20 psi (1.05–1.4 kg/cm²)

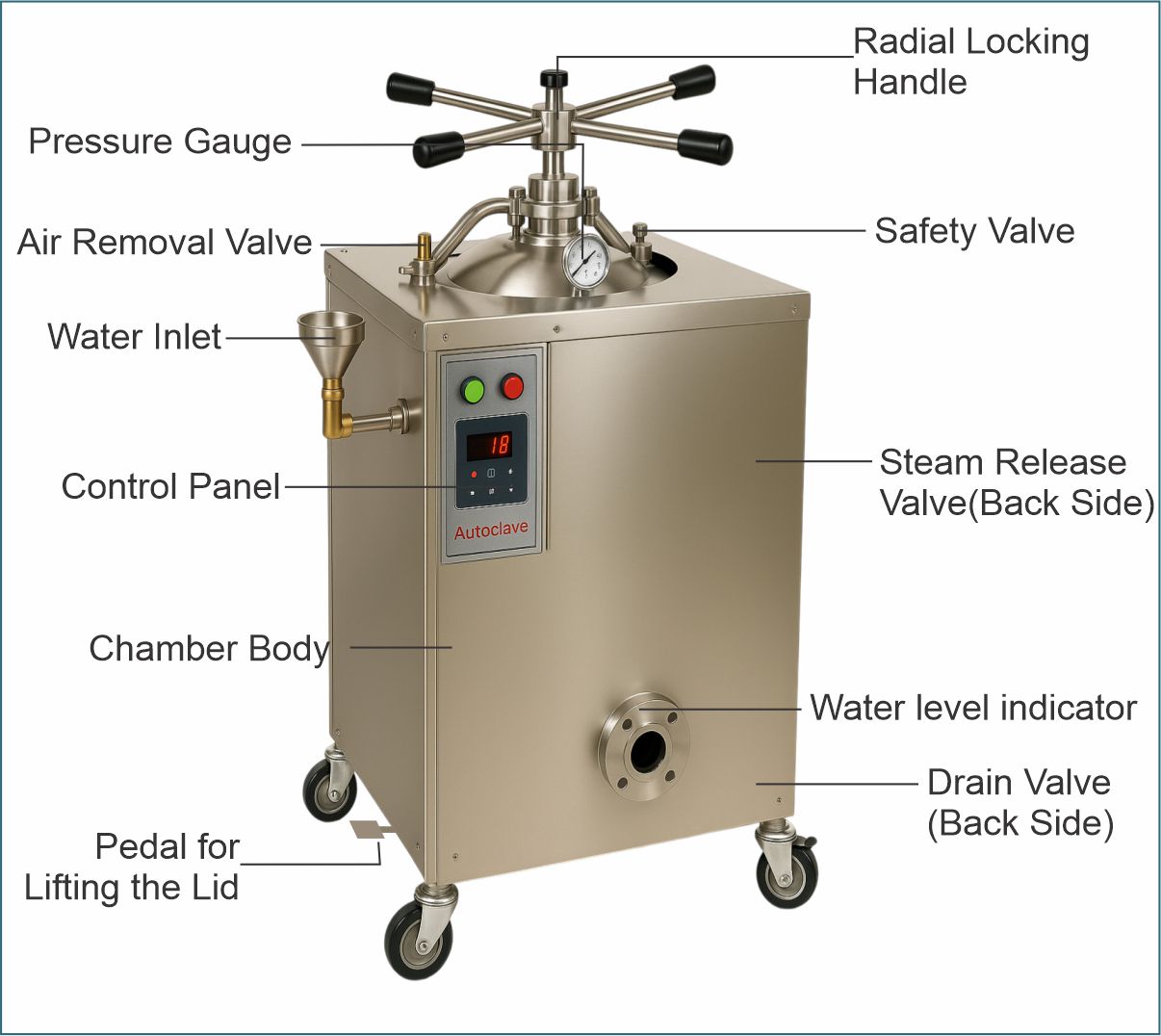

·Equipped with pressure gauge, safety valve, water
level indicator, and steam release system.
·Mounted on castor wheels for easy mobility
·Available in capacities: 50L, 75L, 100L, 150L and
higher on request
·Designed for continuous heavy-duty sterilization
Applications
·Hospitals & central sterile supply departments (CSSD)
·Research & diagnostic laboratories
·Pharmaceutical & biotech facilities
·Food & microbiology testing laboratories
·Veterinary & agricultural research institutes
Sterilization Cycle:
·Operates at 121°C at 15 psi pressure
·Typical cycle time: 15–30 minutes depending on load
Power Supply:
·220V AC, 50 Hz (customizable for other voltages)
*Autoclave sizes can be customized
